Usage

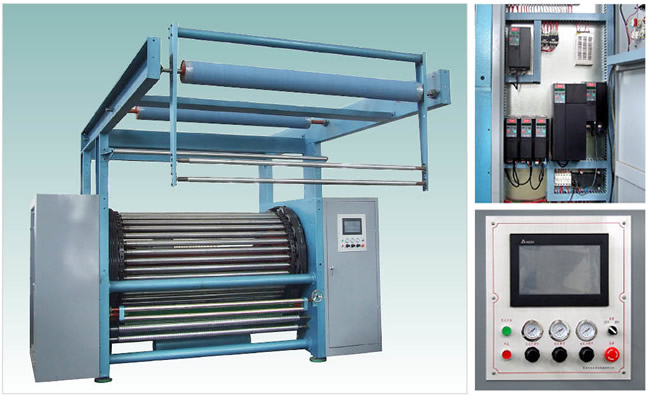

The KF058-36-XL raising machine is mainly used for cotton, terry, raising processing leather fabric and other fabric surface.

Main Technical Specifications and Parameters
Nomial width XL(CM):180,200,220,250,280,320
Raising roller number:36
Raising roller diameter(bare): ￠70mm
Cylinder diameter: ￠1120mm
Cylinder speed:60-90 r/min
Production speed:5-40 m/min
Installed capacity:25-35kw
Dimension of machine: 4200×4000×3000（mm）(XL=200cm)
Dust collection fan（The user owned or purchase）:5# fan 7.5kw
